Peblar | AC Residential Private

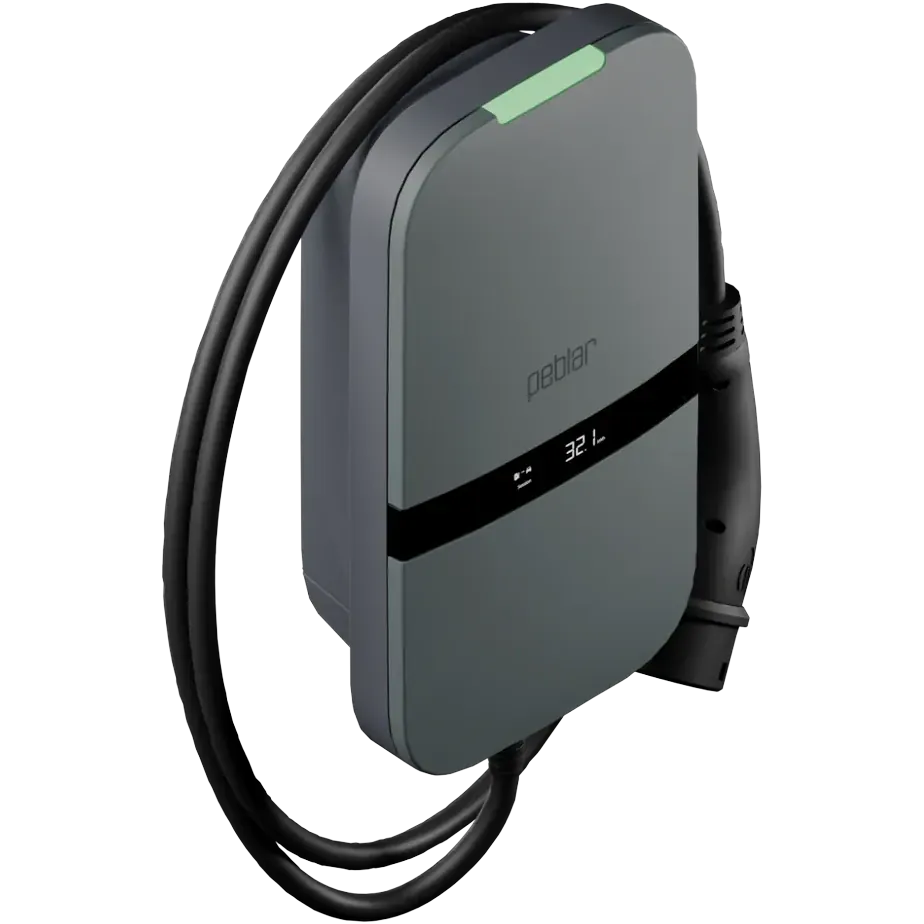

Peblar Home
from €779
Compatible. Connect and manage your Peblar Home with Plugchoice over OCPP, alongside any other brand.
Where to buy
Shops we track selling this charger, cheapest known price first. Prices are read from public listings and exclude installation unless noted.
- Wallbox DiscounterNLIn stock | as of 2026-07-06€779Visit shop
- Wallbox DiscounterNLIn stock | as of 2026-07-06€779Visit shop
- Wallbox DiscounterNLIn stock | as of 2026-07-06€779Visit shop
- YESSS Electrical NederlandNL
Retail prices change often and vary by region, VAT and configuration. Confirm the current price and what is included with the shop before buying.
Specifications
Each value shows its source and the date it was read. A check marks data confirmed by a second, independent source.
Identification
- SKU(s)
- UMD6004-2502-84R01✓
- Brand
- Peblar✓✓
- Manufacturer / OEM
- Prodrive Technologies (Son, NL)✓✓
- Country of origin / design
- Netherlands✓✓
- Product segment
- AC Residential Private✓✓
- Range / variants
- Home / Home Plus / Business✓
- Year on market
- 2024✓
- Lifecycle status
- In production✓✓
- Form factor
- wallbox✓✓
Technical Specifications
- Dimensions
- 387 x 207 x 128 mm (HxWxD, excl. cable)✓
- Weight
- 2.9 kg✓
- Charging capacity
- 11 kW✓✓
- Number of outlets
- 1✓✓
- Communication protocol
- OCPP 1.6-J (2.0.1 future)✓
- Network interfaces**
- WiFi 2.4GHz WPA2; Ethernet 100Mbit✓
- User interfaces
- Multicolor LED; buzzer; display; web interface✓
- Internal energy meter
- No✓
- (HMI) Identification
- RFID (Mifare Classic/DESFire), NFC, or none✓
- Safety
- 6mA DC earth leakage; Class I; OV cat III; PEN + tampering detection (UK only)✓
- Operating conditions
- -30 to +50C; storage -40 to +85C; altitude 3000m; humidity 5-95%✓
- Compliance
- IEC 61851-1 AC mode 3; RED 2014/53/EU✓
- Factory warranty
- 3 years✓✓
- Current type (AC / DC)
- AC✓✓
- Charging mode (IEC 61851)
- Mode 3✓✓
Physical
- Height (mm)
- 387✓
- Width (mm)
- 207✓
- Depth (mm)
- 128✓
- Color options
- BlackWhite✓
- Tethered cable length
- 5 m or 7.5 m✓✓
- Mounting options
- Wall, Pole✓
Electrical
- Number of phases
- 1 or 3✓✓
- Rated voltage
- 230 V / 400 V✓
- Rated / max output current
- 16 A✓✓
- Max power 1-phase
- 3.7 kW✓
- Max power 3-phase
- 11 kW✓
- Grid frequency
- 50 Hz✓
- 1-to-3 phase switching
- No✓
- Bidirectional / V2G / V2H
- No✓
Connector
- Connector type
- Type 2✓✓
- Socket / cable / shutter
- Fixed cable✓
- Shutter option
- No✓
Metering
- MID certified
- No✓✓
- Eichrecht certified
- No✓✓
Connectivity
- WiFi
- Yes✓✓
- WiFi bands / standard
- 2.4 GHz✓
- Bluetooth
- No✓
- Cellular (4G/LTE)
- No✓✓
- Ethernet
- Yes✓✓
- RS485
- Yes✓
- Mesh / proprietary RF
- No✓
- PLC
- No✓
- RFID / NFC
- Yes✓✓
- Plug & Charge (ISO 15118)
- No✓✓
- OCPP versions
- OCPP 1.6✓✓
- Local API (Modbus / REST)
- Modbus, REST✓
Smart / load management
- Dynamic load balancing
- Yes✓✓
- Group / static load balancing
- Yes (RS-485 / Ethernet)✓
- Solar charging
- Yes✓✓
- Phase balancing
- Phase imbalance support✓
- Smart app
- Web only✓✓
- Scheduling / dynamic tariffs
- Yes (web / OCPP)✓
Safety detail
- DC leakage protection
- Yes✓
- Built-in RCD / RCBO type
- 6 mA DC earth leakage protection✓✓
- Earth fault protection
- 6mA DC✓
- Insulation class
- I✓
- Overvoltage category
- III✓
- IP rating
- IP54✓✓
- IK rating
- IK10✓✓
- PEN fault detection
- Yes (UK only)✓
- Anti-theft / cable lock
- Cable can be permanently fixed (socket models)✓
Environment
- Operating temperature
- -30 to +50 C✓
- Storage temperature
- -40 to +85 C✓
- Operating altitude
- 3000 m✓
- Humidity range
- 5-95%✓
HMI / UX
- Display
- Yes✓
- LED status indicator
- Yes✓
- Buzzer
- Yes✓
Installation
- Quick-install claim
- Single-PCB design, few cables✓
- Indoor / outdoor
- Indoor & Outdoor✓
Compliance extra
- Standards (full list)
- IEC 61851-1 AC mode 3; RED 2014/53/EU✓
Optional / non-technical
- Free SIM / connectivity
- n/a✓
- Processor / compute
- Single integrated PCB✓
Market & positioning
- Markets sold / certified
- Netherlands; Belgium; Germany✓✓
Certification & compliance
- CE / UKCA marking
- CE✓✓
Media & assets
- Official datasheet (link)
- https://peblar.com/hubfs/EN_Peblar%20AC%20chargers_Detailed%20Spec%20Sheet.pdf✓✓
