Peblar | AC Commercial / Semi-public

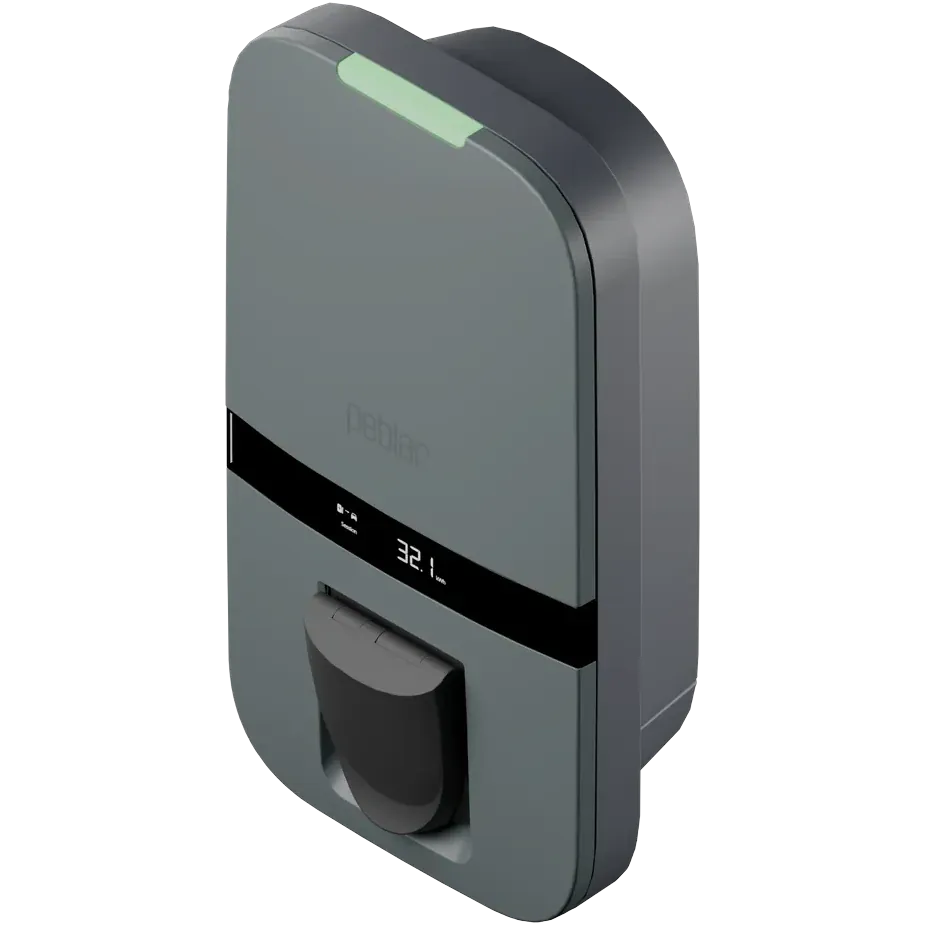

Peblar Business
from €899
Compatible. Connect and manage your Peblar Business with Plugchoice over OCPP, alongside any other brand.
Where to buy
Shops we track selling this charger, cheapest known price first. Prices are read from public listings and exclude installation unless noted.
- SlimmelaadpuntNLIn stock | as of 2026-07-06€899Visit shop
- DurachargeNLOut of stock | as of 2026-07-06€985Visit shop
- DurachargeNLOut of stock | as of 2026-07-06€985Visit shop
- DurachargeNLOut of stock | as of 2026-07-06€985Visit shop
- ON-EVGB
Retail prices change often and vary by region, VAT and configuration. Confirm the current price and what is included with the shop before buying.
Specifications
Each value shows its source and the date it was read. A check marks data confirmed by a second, independent source.
Identification
- Brand
- Peblar✓✓
- Manufacturer / OEM
- Prodrive Technologies (Son, NL)✓✓
- Country of origin / design
- Netherlands✓✓
- Product segment
- AC Commercial / Semi-public✓✓
- Range / variants
- Socket / Business Shutter (Type 2S)✓
- Year on market
- 2024✓
- Lifecycle status
- In production✓✓
- Form factor
- wallbox✓✓
Technical Specifications
- Dimensions
- 387 x 207 x 128 mm (HxWxD)✓
- Weight
- 2.9 kg✓
- Charging capacity
- 22 kW✓✓
- Number of outlets
- 1✓✓
- Communication protocol
- OCPP 1.6-J (2.0.1 future); ISO 15118 future✓
- Network interfaces**
- WiFi 2.4GHz WPA2; Ethernet 100Mbit; LTE Cat-M1/NB-IoT/GPRS (nano-SIM)✓
- User interfaces
- Multicolor LED; buzzer; display; web interface✓
- Internal energy meter
- Optional✓
- (HMI) Identification
- RFID (Mifare Classic/DESFire), NFC; ISO 15118 Plug and Charge (future)✓
- Power connection
- 230V / 400V AC, permanent mains only✓
- Safety
- 6mA DC earth leakage; Class I; OV cat III; PEN + tampering detection (UK only)✓
- Operating conditions
- -30 to +50C; storage -40 to +85C; altitude 3000m; humidity 5-95%✓
- Compliance
- IEC 61851-1 AC mode 3; RED 2014/53/EU; MID; Eichrecht (optional)✓
- Factory warranty
- 3 years✓✓
- Current type (AC / DC)
- AC✓✓
- Charging mode (IEC 61851)
- Mode 3✓✓
Physical
- Height (mm)
- 387✓
- Width (mm)
- 207✓
- Depth (mm)
- 128✓
- Color options
- BlackWhite✓
- Tethered cable length
- n/a (socket)✓
- Mounting options
- Wall, Pole✓
Electrical
- Number of phases
- 1 or 3✓✓
- Rated voltage
- 230 V / 400 V✓
- Rated / max output current
- 32 A✓✓
- Max power 1-phase
- 7.4 kW✓
- Max power 3-phase
- 22 kW✓
- Grid frequency
- 50 Hz✓
- 1-to-3 phase switching
- No✓
- Bidirectional / V2G / V2H
- No✓
Connector
- Connector type
- Type 2✓✓
- Socket / cable / shutter
- Socket / shutter (Type 2S)✓
- Shutter option
- Yes (Business Shutter)✓
Metering
- Meter accuracy class
- Class B✓
- MID certified
- Yes✓✓
- Eichrecht certified
- Optional✓✓
Connectivity
- WiFi
- Yes✓✓
- WiFi bands / standard
- 2.4 GHz✓
- Bluetooth
- No✓
- Cellular (4G/LTE)
- Yes✓✓
- SIM type
- Nano-SIM (4FF)✓
- Ethernet
- Yes✓✓
- RS485
- Yes✓
- Mesh / proprietary RF
- No✓
- PLC
- No✓
- RFID / NFC
- Yes✓✓
- Plug & Charge (ISO 15118)
- Yes✓✓
- OCPP versions
- OCPP 1.6✓✓
- Local API (Modbus / REST)
- Modbus, REST✓
Smart / load management
- Dynamic load balancing
- Yes✓✓
- Group / static load balancing
- Yes (RS-485 / Ethernet)✓
- Solar charging
- Yes✓✓
- Phase balancing
- Phase imbalance support✓
- Smart app
- Web only✓✓
- Scheduling / dynamic tariffs
- Yes✓
Safety detail
- DC leakage protection
- Yes✓
- Built-in RCD / RCBO type
- 6 mA DC earth leakage protection✓✓
- Earth fault protection
- 6mA DC✓
- Insulation class
- I✓
- Overvoltage category
- III✓
- IP rating
- IP54✓✓
- IK rating
- IK10✓✓
- PEN fault detection
- Yes (UK only)✓
- Anti-theft / cable lock
- Permanent cable lock (socket)✓
Environment
- Operating temperature
- -30 to +50 C✓
- Storage temperature
- -40 to +85 C✓
- Operating altitude
- 3000 m✓
- Humidity range
- 5-95%✓
HMI / UX
- Display
- Yes✓
- LED status indicator
- Yes✓
- Buzzer
- Yes✓
Installation
- Quick-install claim
- Single-PCB design✓
- Indoor / outdoor
- Indoor & Outdoor✓
Compliance extra
- Standards (full list)
- IEC 61851-1 AC mode 3; RED 2014/53/EU; MID; Eichrecht B/D optional✓
Optional / non-technical
- Processor / compute
- Single integrated PCB✓
Certification & compliance
- CE / UKCA marking
- CE✓✓
Media & assets
- Official datasheet (link)
- https://peblar.com/hubfs/EN_Peblar%20AC%20chargers_Detailed%20Spec%20Sheet.pdf✓✓
