Zaptec | AC Residential Private

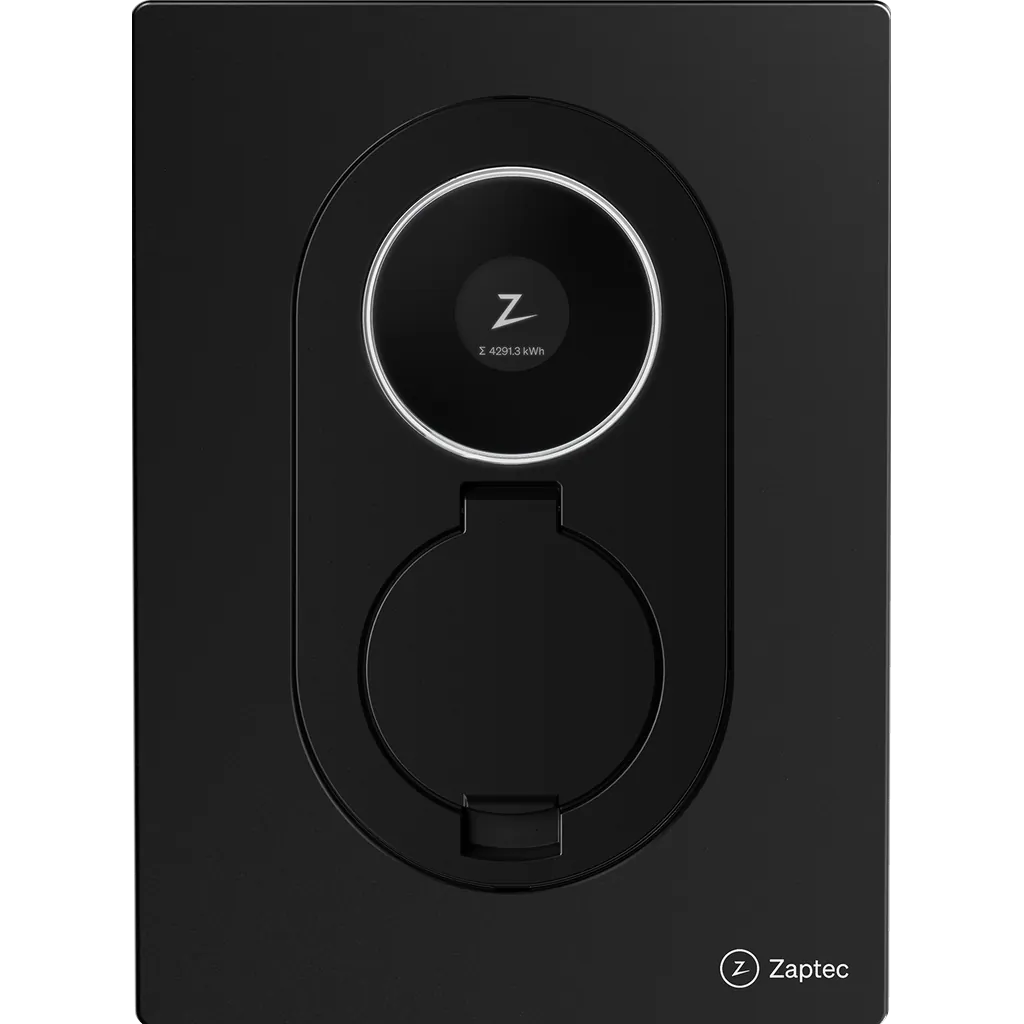

Zaptec Go
Compatible. Connect and manage your Zaptec Go with Plugchoice over OCPP, alongside any other brand.
Where to buy
Shops we track selling this charger, cheapest known price first. Prices are read from public listings and exclude installation unless noted.
- 4BlueNL
- ON-EVGB
- STROOHMBE
Retail prices change often and vary by region, VAT and configuration. Confirm the current price and what is included with the shop before buying.
Specifications
Each value shows its source and the date it was read. A check marks data confirmed by a second, independent source.
Identification
- Manufacturer / OEM
- Zaptec Charger AS✓✓
- Country of origin / design
- NO✓✓
- Lifecycle status
- Active✓✓
Technical Specifications
- Dimensions
- H 242 x W 180 x D 75 mm✓✓
- Weight
- 1.3 kg✓✓
- Communication protocol
- OCPP-J 1.6 Core (most of)✓✓
- User interfaces
- RGBW LED circle for device status (no display)✓✓
- Internal energy meter
- Yes✓✓
- Compliance
- CE; IEC 61851-1:2017, IEC 62955 (RDC-DD 6mA), RED 2014/53/EU, RoHS 2011/65/EU✓✓
- Factory warranty
- 5 years✓✓
Physical
- Height (mm)
- 242✓✓
- Width (mm)
- 180✓✓
- Depth (mm)
- 75✓✓
- Enclosure material
- Plastic✓✓
- Color options
- Six colours: Asphalt Black, Cloud White, Rock Grey, Midnight Blue, Moss Green, Wood Brown✓✓
- Tethered cable length
- n/a (untethered socket model)✓✓
Electrical
- Number of phases
- 1 or 3✓✓
- Rated voltage
- 230 V / 400 V✓✓
- Rated / max output current
- 32 A✓✓
- Max power 1-phase
- 7.4 kW✓✓
- Max power 3-phase
- 22 kW✓✓
Connector
- Connector type
- Type 2✓✓
- Socket / cable / shutter
- Electronic lock, can be permanently locked by user✓✓
Metering
- Metering accuracy (%)
- ±1%✓
- MID certified
- No✓✓
Connectivity
- WiFi
- Yes✓✓
- Bluetooth
- Yes✓✓
- Cellular (4G/LTE)
- Yes✓✓
- RFID / NFC
- Yes✓✓
Smart / load management
- Dynamic load balancing
- Yes✓✓
Safety detail
- IP rating
- IP54✓✓
- IK rating
- IK08✓✓
Environment
- Operating temperature
- -30 to +40 C✓✓
Media & assets
- Official datasheet (link)
- https://www.electricpoint.com/media/productattachments/files/z/a/zaptec-go-ev-charger-datasheet.pdf✓✓
