Easee | AC Commercial / Multi-site

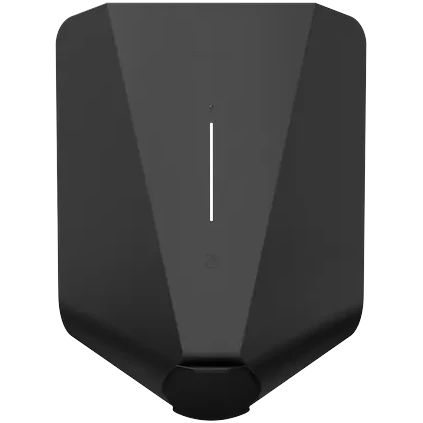

Easee Core (Charge Core)
from €779
Compatible. Connect and manage your Easee Core (Charge Core) with Plugchoice over OCPP, alongside any other brand.
Where to buy
Shops we track selling this charger, cheapest known price first. Prices are read from public listings and exclude installation unless noted.
- Wallbox DiscounterNLIn stock | as of 2026-07-06€779Visit shop
- Wallbox DiscounterNLIn stock | as of 2026-07-06€779Visit shop
- Wallbox DiscounterNLIn stock | as of 2026-07-06€779Visit shop
- Wallbox DiscounterDEIn stock | as of 2026-07-06€779Visit shop
- CarplugFRIn stock | as of 2026-07-06€1,068Visit shop
Retail prices change often and vary by region, VAT and configuration. Confirm the current price and what is included with the shop before buying.
Specifications
Each value shows its source and the date it was read. A check marks data confirmed by a second, independent source.
Identification
- SKU(s)
- E100E31-E35 etc.✓
- Brand
- Easee✓✓
- Manufacturer / OEM
- Easee AS, Stavanger, Norway✓✓
- Country of origin / design
- NO✓
- Product segment
- AC Commercial / Multi-site✓✓
- Range / variants
- Charge Core (Chargeberry + shells)✓
- Year on market
- 2023✓
- Lifecycle status
- In production✓✓
- Form factor
- wallbox✓✓
Technical Specifications
- Dimensions
- 256 x 193 x 106 mm (HxWxD)✓
- Weight
- 1.5 kg✓
- Charging capacity
- 22 kW✓✓
- Number of outlets
- 1✓✓
- Communication protocol
- OCPP (cloud / 3rd-party)✓
- Network interfaces**
- WiFi 2.4GHz b/g/n; Bluetooth 4.2; built-in LTE Cat M1; Easee Link 868MHz radio✓
- User interfaces
- LED light strip; touch button; Easee App✓
- Internal energy meter
- Yes✓
- Supported grid types
- TN, TT, IT✓
- (HMI) Identification
- Built-in RFID/NFC reader✓
- Power connection
- 3x 230V / 400V AC +/-10%, 50Hz; max 80A breaker✓
- Safety
- RCD Type A 30mA (EN 60947-2) + 6mA DC RDC-DD; 40+ sensors; self-test every 24h; Class I; OV cat III✓
- Operating conditions
- -30 to +40C✓
- Compliance
- IEC 61851; RED; EN 60947-2; IEC 62955✓
- Factory warranty
- 5 years✓✓
- Current type (AC / DC)
- AC✓✓
- Charging mode (IEC 61851)
- Mode 3✓✓
Physical
- Height (mm)
- 256✓
- Width (mm)
- 193✓
- Depth (mm)
- 106✓
- Wall-mount hole spacing
- c/c 160 x 125mm✓
- Enclosure material
- Plastic✓
- Color options
- Interchangeable shells✓
- Tethered cable length
- n/a (socket)✓
- Mounting options
- Wall✓
Electrical
- Number of phases
- 1 or 3✓✓
- Rated voltage
- 230 V / 400 V✓
- Rated / max output current
- 32 A✓✓
- Min adjustable current
- 6 A✓
- Max power 1-phase
- 7.4 kW✓
- Max power 3-phase
- 22 kW✓
- Grid frequency
- 50 Hz✓
- 1-to-3 phase switching
- Yes (auto phase selection)✓
- Max upstream fuse / breaker
- Max 80A✓
- Bidirectional / V2G / V2H
- No✓
Connector
- Connector type
- Type 2✓✓
- Socket / cable / shutter
- Socket (lockable)✓
Metering
- MID certified
- Yes✓
Connectivity
- WiFi
- Yes✓✓
- WiFi bands / standard
- 2.4 GHz✓
- Bluetooth
- Yes✓✓
- Cellular (4G/LTE)
- Yes✓✓
- SIM type
- eSIM✓
- Ethernet
- No✓
- Mesh / proprietary RF
- Easee Link 868MHz radio✓
- PLC
- No✓
- RFID / NFC
- Yes✓✓
- OCPP versions
- OCPP 1.6✓✓
- Local API (Modbus / REST)
- Yes✓
Smart / load management
- Dynamic load balancing
- Yes✓✓
- Group / static load balancing
- Yes (Easee Link, auto queue)✓
- Solar charging
- Optional✓
- Phase balancing
- Yes (auto 1/3-phase)✓
- Smart app
- Cloud app✓✓
- Scheduling / dynamic tariffs
- Yes✓
Safety detail
- DC leakage protection
- Yes✓
- Built-in RCD / RCBO type
- RCD Type A 30 mA AC + 6 mA RDC-DD✓✓
- Earth fault protection
- Built-in, self-test every 24h✓
- Overload / overcurrent protection
- Yes✓
- Temperature sensors
- 40+ sensors✓
- Insulation class
- I✓
- Overvoltage category
- III✓
- IP rating
- IP54✓✓
- IK rating
- IK10✓✓
- Anti-theft / cable lock
- Permanent Type 2 cable lock✓
Environment
- Operating temperature
- -30 to +40 C✓
HMI / UX
- Display
- No✓
- LED status indicator
- Yes✓
- Touch button
- Yes✓
Installation
- Wire terminal type
- Backplate, Installer app✓
- Tightening torque
- 5 Nm✓
- Quick-install claim
- Click-on Chargeberry; parallel connect; built-in earth leakage breaker✓
- Modular / backplate
- Easee Ready backplate + Chargeberry core✓
- Indoor / outdoor
- Outdoor✓
Compliance extra
- Standards (full list)
- IEC 61851; RED; EN 60947-2; IEC 62955✓
Optional / non-technical
- Optional: Max. AC daisychain
- Up to 101 on a single circuit✓
- Max. AC IN wire size (mm2)
- 16mm2 (single) / 10mm2 (parallel)✓
- Max. AC IN outer diameter (mm)
- 8-22mm✓
- Lifetime software support
- Continuous cloud updates✓
- Free SIM / connectivity
- eSIM✓
Market & positioning
- Markets sold / certified
- Norway; Sweden; Denmark; Finland; Iceland; Germany; Austria; Switzerland; Netherlands; Belgium; France; Ireland✓✓
- Apparent product focus
- Multi-site commercial charging, unlimited chargers per site via Easee Cloud✓✓
