Easee | AC Commercial / Multi-site

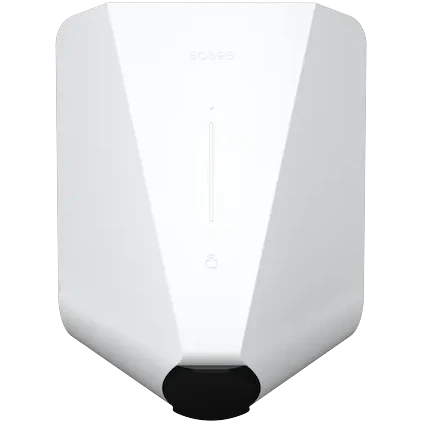

Easee Charge
Compatible. Connect and manage your Easee Charge with Plugchoice over OCPP, alongside any other brand.
Where to buy
Shops we track selling this charger, cheapest known price first. Prices are read from public listings and exclude installation unless noted.
- Electro Groothandel Snoeck B.V.NL
- STROOHMBE
Retail prices change often and vary by region, VAT and configuration. Confirm the current price and what is included with the shop before buying.
Specifications
Each value shows its source and the date it was read. A check marks data confirmed by a second, independent source.
Identification
- Brand
- Easee✓✓
- Manufacturer / OEM
- Easee AS, Stavanger, Norway✓✓
- Country of origin / design
- Norway✓✓
- Product segment
- AC Commercial / Multi-site✓✓
- Range / variants
- Charge / Charge Core / One / Charge Up✓
- Year on market
- 2018✓
- Lifecycle status
- In production✓✓
- Form factor
- wallbox✓✓
Technical Specifications
- Dimensions
- 256 x 193 x 106 mm (HxWxD)✓
- Weight
- 1.5 kg✓
- Charging capacity
- 22 kW✓✓
- Number of outlets
- 1✓✓
- Communication protocol
- OCPP (via cloud / partners)✓
- Network interfaces**
- WiFi 2.4GHz b/g/n; Bluetooth 4.2; built-in LTE Cat M1 (eSIM); Easee Link 868MHz radio✓
- User interfaces
- LED light strip; touch button; Easee App✓
- Internal energy meter
- No✓
- Supported grid types
- TN, TT, IT✓
- (HMI) Identification
- Built-in RFID/NFC reader✓
- Power connection
- 3x 230V / 400V AC +/-10%, 50Hz; max 80A breaker✓
- Safety
- Integrated RCD Type A 30mA (EN 60947-2) + 6mA DC RDC-DD (IEC 62955); 40+ internal sensors; self-test every 24h; OV cat III; Class I✓
- Operating conditions
- -30 to +40C✓
- Compliance
- IEC 61851; RED; approved per EN 60947-2✓
- Factory warranty
- 3 years✓✓
- Current type (AC / DC)
- AC✓✓
- Charging mode (IEC 61851)
- Mode 3✓✓
Physical
- Height (mm)
- 256✓
- Width (mm)
- 193✓
- Depth (mm)
- 106✓
- Wall-mount hole spacing
- c/c 160 x 125mm✓
- Enclosure material
- Plastic✓
- Color options
- Multiple shells✓
- Tethered cable length
- n/a (socket)✓
- Mounting options
- Wall✓
Electrical
- Number of phases
- 1 or 3✓✓
- Rated voltage
- 230 V / 400 V✓
- Rated / max output current
- 32 A✓✓
- Min adjustable current
- 6 A✓
- Max power 1-phase
- 7.4 kW✓
- Max power 3-phase
- 22 kW✓
- Grid frequency
- 50 Hz✓
- 1-to-3 phase switching
- Yes✓✓
- Max upstream fuse / breaker
- Max 80A✓
- Bidirectional / V2G / V2H
- No✓
Connector
- Connector type
- Type 2✓✓
- Socket / cable / shutter
- Socket (lockable)✓
Metering
- MID certified
- No✓
- Eichrecht certified
- No✓
Connectivity
- WiFi
- Yes✓✓
- WiFi bands / standard
- 2.4 GHz✓
- Bluetooth
- Yes✓✓
- Cellular (4G/LTE)
- Yes✓✓
- SIM type
- eSIM✓
- Ethernet
- No✓
- Mesh / proprietary RF
- Easee Link 868MHz radio✓
- PLC
- No✓
- RFID / NFC
- Yes✓✓
- Plug & Charge (ISO 15118)
- Yes✓
- OCPP versions
- OCPP 1.6✓✓
- Local API (Modbus / REST)
- Yes✓
Smart / load management
- Dynamic load balancing
- Yes✓✓
- Group / static load balancing
- Yes (Easee Link)✓
- Solar charging
- Optional✓
- Phase balancing
- Yes (auto 1/3-phase, near 100% utilisation)✓
- Smart app
- Cloud app✓✓
- Scheduling / dynamic tariffs
- Yes✓
Safety detail
- DC leakage protection
- Yes✓
- Built-in RCD / RCBO type
- Type B (30 mA AC / 6 mA DC)✓✓
- Earth fault protection
- Built-in, self-test every 24h✓
- Overload / overcurrent protection
- Yes✓
- Temperature sensors
- 40+ sensors (current, voltage, temp, humidity)✓
- Insulation class
- I✓
- Overvoltage category
- III✓
- IP rating
- IP54✓✓
- IK rating
- IK10✓✓
- Anti-theft / cable lock
- Theft protection; permanent Type 2 cable lock✓
Environment
- Operating temperature
- -30 to +40 C✓
HMI / UX
- Display
- No (LED strip only)✓
- LED status indicator
- Yes✓
- Touch button
- Yes✓
Installation
- Wire terminal type
- Backplate, configured via Installer app✓
- Tightening torque
- 5 Nm✓
- Quick-install claim
- Easee Ready click-on backplate; parallel connect on same circuit✓
- Modular / backplate
- Easee Ready backplate✓
- Indoor / outdoor
- Outdoor✓
Compliance extra
- Standards (full list)
- IEC 61851; RED 2014/53/EU; EN 60947-2; IEC 62955✓
Optional / non-technical
- Optional: Max. AC daisychain
- Up to 101 on a single circuit✓
- Max. AC IN wire size (mm2)
- 16mm2 (single) / 10mm2 (parallel)✓
- Max. AC IN outer diameter (mm)
- 8-22mm✓
- Lifetime software support
- Continuous cloud updates✓
- Free SIM / connectivity
- Free 4G for life (eSIM)✓
Market & positioning
- Markets sold / certified
- United Kingdom✓✓
- Apparent product focus
- Commercial charging at scale (workplace, apartments, car parks, fleet)✓✓
Certification & compliance
- CE / UKCA marking
- CE✓✓
Media & assets
- Official datasheet (link)
- https://download.easee.com/m/59e508976a5cf676/original/EN_Easee_Charge_Productsheet.pdf✓✓
