Delta | DC Fast (20-50kW)

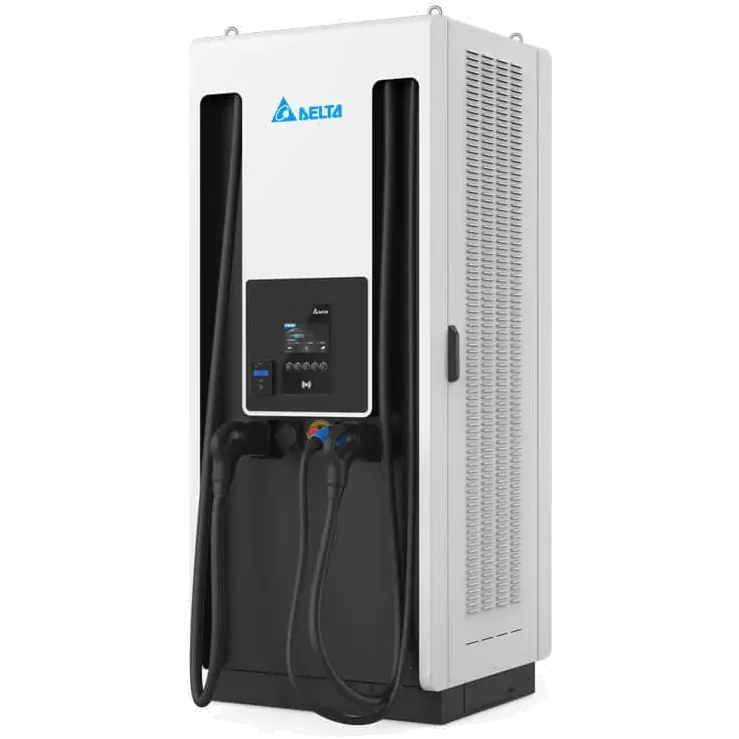

Ultra Fast Charger 200kW (UFC 200)
Where to buy
Shops we track selling this charger, cheapest known price first. Prices are read from public listings and exclude installation unless noted.
No tracked shops for this charger yet.
Specifications
Each value shows its source and the date it was read. A check marks data confirmed by a second, independent source.
Identification
- Brand
- Delta✓✓
- Manufacturer / OEM
- Delta Electronics, Inc. (Taiwan); EU entity Delta Electronics (Netherlands) BV, Hoofddorp NL✓✓
- Country of origin / design
- TW✓✓
- Product segment
- DC Ultra-fast (50-250kW)✓✓
- Year on market
- 2020✓✓
Technical Specifications
- Dimensions
- 2079 x 859 x 998 mm (H x W x D)✓✓
- Weight
- 550 kg✓✓
- Charging capacity
- 2 x 22 kW✓✓
- Number of outlets
- 4✓✓
- Power connection
- 3-phase, L1 L2 L3 N PE, 400 V RMS (L-L) +/-10%, 50/60 Hz✓✓
- Compliance
- IEC 61851-1, IEC 61851-23, IEC 62479-1/-7; EMC EN 55011, IEC 61851-21-2✓✓
Physical
- Height (mm)
- 2079✓✓
- Width (mm)
- 859✓✓
- Depth (mm)
- 998✓✓
- Tethered cable length
- 3.2 m✓✓
Electrical
- Number of phases
- 3✓✓
- Rated voltage
- DC output 200 V to 920 V DC✓✓
- Rated / max output current
- 500 A✓✓
- Max power 3-phase
- 200 kW✓✓
- Grid frequency
- 50/60 Hz✓✓
Connector
- Connector type
- CCS2, CHAdeMO, Type 2✓✓
Metering
- Eichrecht certified
- Yes✓✓
Connectivity
- Cellular (4G/LTE)
- Yes✓✓
- Ethernet
- Yes✓✓
- RFID / NFC
- Yes✓✓
- OCPP versions
- OCPP 1.6✓✓
Safety detail
- Built-in RCD / RCBO type
- RCD Type A 30 mA + 6 mA DC leakage detection (compliant to IEC 62955)✓✓
- IP rating
- IP55✓✓
- IK rating
- IK10✓✓
Environment
- Operating temperature
- -25 to +50 C✓✓
- Storage temperature
- -40 to +80 C✓✓
- Operating altitude
- 2,000 m✓✓
- Humidity range
- 95%✓✓
HMI / UX
- Display
- 7 inch LCD✓✓
Compliance extra
- AFIR-compliant NFC
- Optional✓✓
- Standards (full list)
- IEC 61851-1, IEC 61851-23/-24, IEC 62479-1/-7, IEC 62196-3, IEC 62196-2 Mode 3, DIN 70121, JEVS G105 Rev 1.2; EMC EN 55011, IEC 61851-21-2; accessibility DIN 18040; ISO 15118-2 prepared✓✓
Certification & compliance
- CE / UKCA marking
- CE✓✓
Media & assets
- Official datasheet (link)
- https://filecenter.deltaww.com/Products/download/21/2101/Catalogue/UFC%20200_Leaflet_EU_EN_20221103.pdf✓✓
