AgeVolt | AC Residential Private

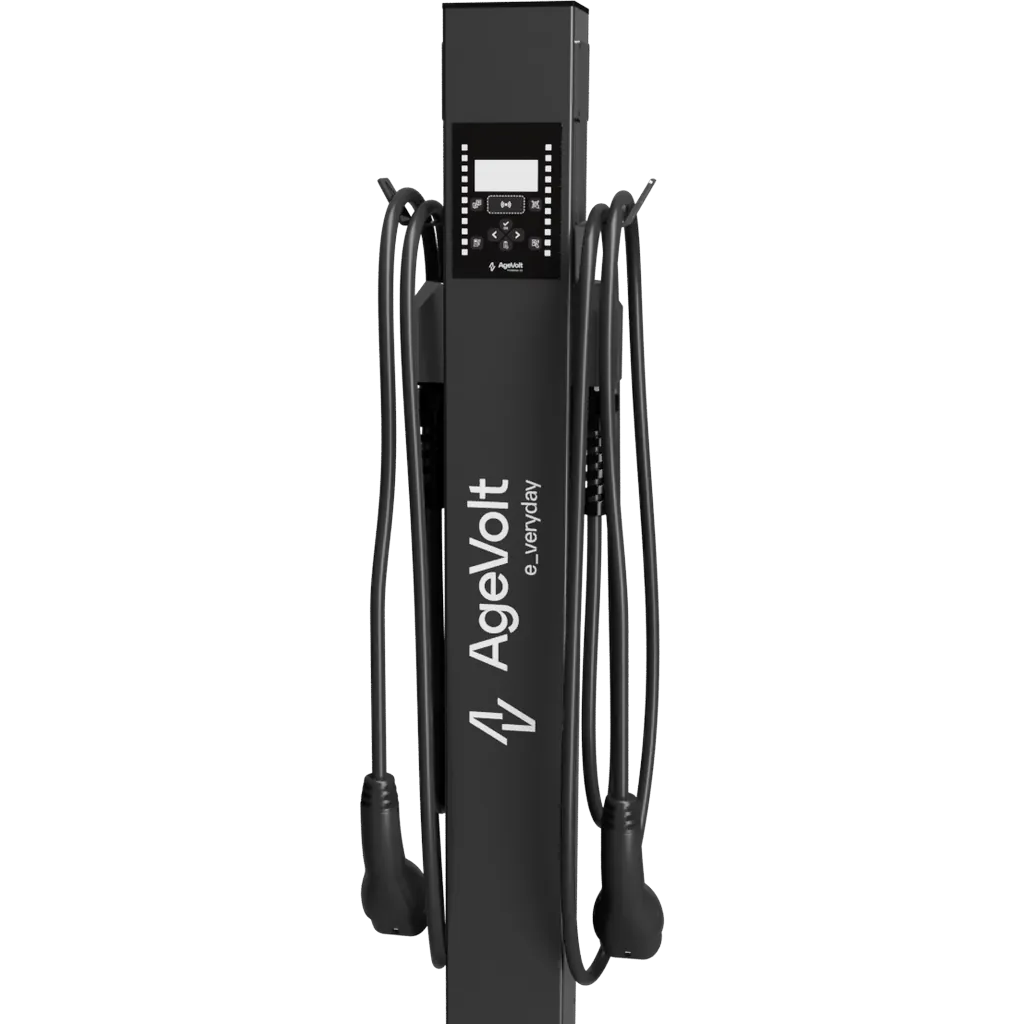

Pillar Slim
Compatible. Connect and manage your Pillar Slim with Plugchoice over OCPP, alongside any other brand.
Where to buy
Shops we track selling this charger, cheapest known price first. Prices are read from public listings and exclude installation unless noted.
No tracked shops for this charger yet.
Specifications
Each value shows its source and the date it was read. A check marks data confirmed by a second, independent source.
Identification
- SKU(s)
- AV-PS-3-400.63-T2_22S0.22S0-B0-D00L1-1✓✓
- Brand
- AgeVolt✓
- Manufacturer / OEM
- AgeVolt Slovakia s. r. o.✓
- Country of origin / design
- SK✓
- Product segment
- AC pedestal (commercial / public)✓
- Range / variants
- Master (full OCPP controller; manages 1-100 chargers); Slave (dependent unit); TouchPoint (touchscreen display variant)✓
Technical Specifications
- Dimensions
- 1500 x 200 x 300 mm✓✓
- Weight
- 20 kg✓✓
- Number of outlets
- 2✓✓
- Communication protocol
- OCPP 1.6-J✓✓
- Network interfaces**
- WiFi; 2G/3G/4G; Ethernet 10/100 BaseTX✓
- Internal energy meter
- Yes✓✓
- Charging mode (IEC 61851)
- Mode 3 AC✓✓
Physical
- Height (mm)
- 1500✓✓
- Width (mm)
- 200✓✓
- Depth (mm)
- 300✓✓
- Tethered cable length
- 5 m✓
Electrical
- Rated voltage
- 230 V / 400 V✓✓
- Rated / max output current
- 32 A✓✓
- Max power 3-phase
- 22 kW✓✓
Connector
- Connector type
- Type 2✓✓
- Socket / cable / shutter
- Type 2 socket outlets or tethered cable (5m or 7m)✓
Metering
- MID certified
- Yes✓✓
Connectivity
- WiFi
- Yes✓✓
- Ethernet
- Yes✓✓
- OCPP versions
- OCPP 1.6✓
- Local API (Modbus / REST)
- Modbus TCP, MQTT✓✓
Smart / load management
- Smart app
- Cloud app✓
Safety detail
- IP rating
- IP54✓✓
- IK rating
- IK10✓✓
Optional / non-technical
- Max. AC IN wire size (mm2)
- 25✓✓
