Loop Global | AC Residential / Business

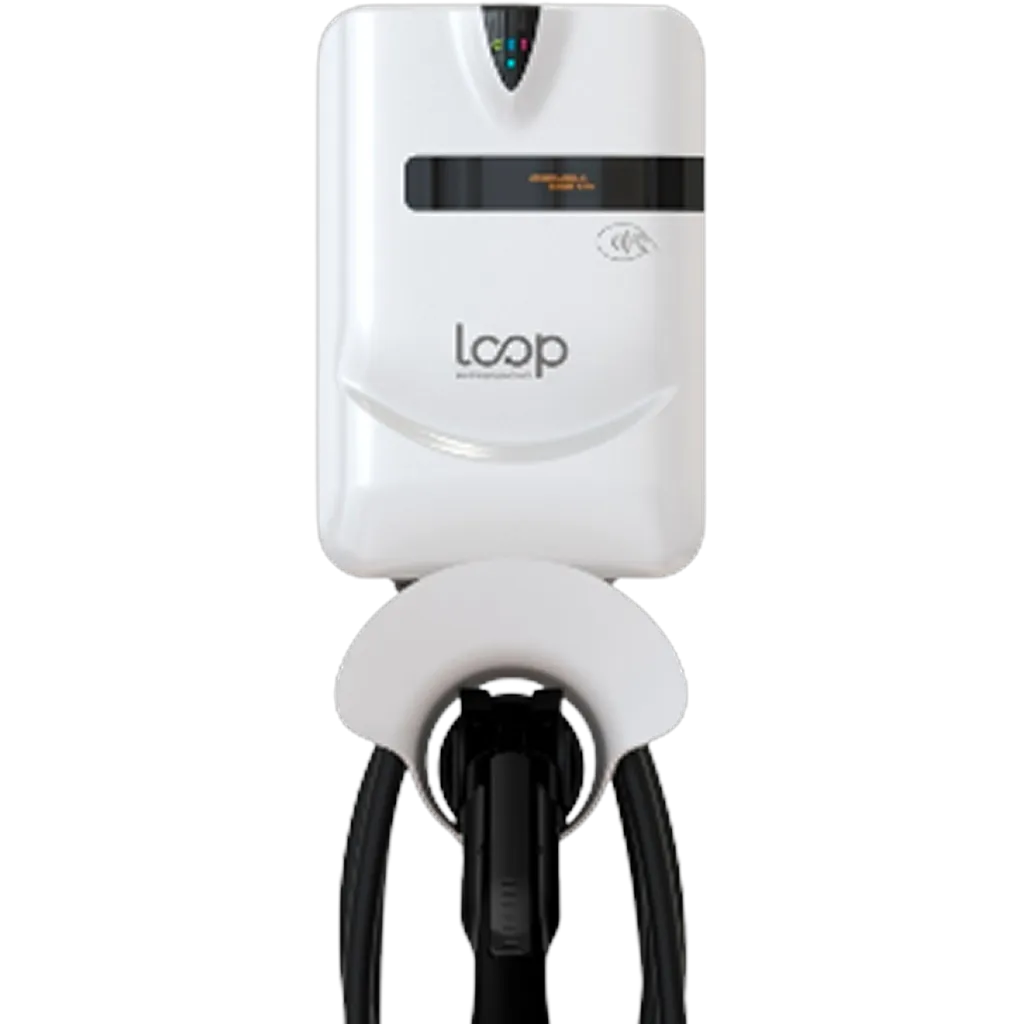

Loop Global EV-Flex+
兼容. 通过 OCPP 用 Plugchoice 连接并管理您的 Loop Global EV-Flex+，并可同时管理任意其他品牌。
购买渠道
我们追踪的、销售此充电桩的店铺，已知最低价优先。价格读取自公开商品页面，除非另有说明，不含安装费。
暂无追踪到销售此充电桩的店铺。
技术规格
每个数值都标明来源及读取日期。对勾表示该数据已由第二个独立来源确认。
Identification
- Manufacturer SKU(s)
- EVS-40A-L2-001✓
- Brand
- Loop Global✓
- Manufacturer / OEM
- Loop Global Inc.✓
- Country of origin / design
- US✓
- Product segment
- Commercial Level 2 AC (enhanced power)✓
Technical Specifications
- Weight
- 5.28 kg✓✓
- Charging capacity
- 9.6 kW✓✓
- Number of outlets
- 1✓
- Factory warranty
- 3 years✓
- Current type (AC / DC)
- AC✓
Physical
- Height (mm)
- 283 (11.14 in)✓✓
- Width (mm)
- 192 (7.56 in)✓✓
- Depth (mm)
- 79 (3.11 in)✓✓
- Tethered cable length
- 7.6 m✓
- Mounting options
- Wall, Pole, Pedestal✓
Electrical
- Number of phases
- 1✓
- Rated voltage
- 230 V✓
- Rated / max output current
- 40 A✓
- Max power 1-phase
- 9.6 kW✓
- Grid frequency
- 60 Hz✓
- Max upstream fuse / breaker
- 50 A OCPD✓✓
Connector
- Connector type
- Type 1✓
- Socket / cable / shutter
- Tethered cable 25 ft (7.6 m)✓
Metering
- Metering accuracy (%)
- < +/-1%✓
Connectivity
- WiFi
- Yes✓
- WiFi bands / standard
- 2.4 GHz✓
- Cellular (4G/LTE)
- Yes✓✓
- Ethernet
- Yes✓✓
- RFID / NFC
- Yes✓✓
- OCPP versions
- OCPP 1.6✓
Smart / load management
- Dynamic load balancing
- Yes✓
Safety detail
- DC leakage protection
- Yes✓
- IP rating
- IP66✓✓
- IK rating
- IK10✓✓
Environment
- Operating temperature
- -30 to +50 C✓
HMI / UX
- Display
- Configurable OLED; status indicators: Power/Ready, Charging, Fault✓
Installation
- Indoor / outdoor
- Indoor & Outdoor✓
Market & positioning
- Markets sold / certified
- United States (UL/FCC certified)✓
Certification & compliance
- Safety certification body / number
- UL 1998 / UL 2231 / UL 2594; FCC; Energy Star; CTEP; NTEP✓
Media & assets
- Official datasheet (link)
- https://loopglobal.com/wp-content/uploads/2025/09/ev-flex-plus_spec-sheet.pdf✓
