NRGkick | AC Residential Private (Mode 2)

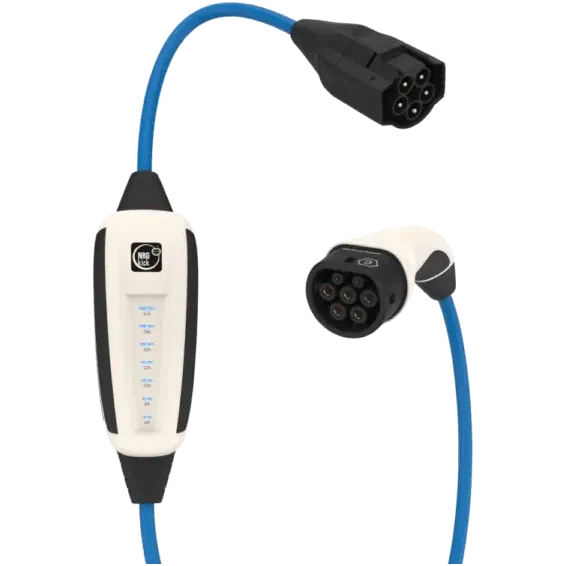

NRGkick 32A
兼容. 通过 OCPP 用 Plugchoice 连接并管理您的 NRGkick 32A，并可同时管理任意其他品牌。
购买渠道
我们追踪的、销售此充电桩的店铺，已知最低价优先。价格读取自公开商品页面，除非另有说明，不含安装费。
暂无追踪到销售此充电桩的店铺。
技术规格
每个数值都标明来源及读取日期。对勾表示该数据已由第二个独立来源确认。
Identification
- Brand
- NRGkick✓
- Manufacturer / OEM
- DiniTech GmbH✓
- Country of origin / design
- AT✓
- Product segment
- Home / portable AC (Mode 2 mobile charging unit)✓
- Range / variants
- NRGkick 32A; cable 5 m / 7.5 m / 10 m; optional GSM/GPS/SIM✓
- Year on market
- 2021✓
- Lifecycle status
- Active✓
Technical Specifications
- Dimensions
- 216 x 90 x 64 mm (charging unit, L x W x H)✓✓
- Weight
- 3.5 kg✓✓
- Charging capacity
- 22 kW✓✓
- Number of outlets
- 1✓
- Communication protocol
- OCPP 1.6 (optional); local API Modbus TCP / JSON✓
- Network interfaces**
- WiFi + Bluetooth LE; optional GSM/4G + GNSS (GPS/GLONASS/Galileo/Beidou)✓
- User interfaces
- NRGkick App (iOS/Android) + touch surface on charging unit✓
- Internal energy meter
- Yes✓
- Supported grid types
- 1-/2-/3-phase AC✓
- Power connection
- Interchangeable plug attachments (Schuko/domestic, CEE16, CEE32, Type 2, wall socket)✓
- Safety
- Patented safety connector system (arc elimination, per-pin temperature monitoring); overheating, blackout, under/over-voltage protection; phase-shift detection; false-connection test; switching-contact diagnosis; protective-conductor (loop impedance) test; RCD 30 mA AC + 6 mA DC; IP67/IP69K; IK10✓
- Operating conditions
- -40 to +70 C (standard +45 C); 5-95% humidity; max 4000 m✓✓
- Compliance
- CE, UKCA, RCM compliant to IEC EN 62752✓✓
- Factory warranty
- 2 years✓✓
Electrical
- Number of phases
- 1 or 3✓
- Rated voltage
- 230 V / 400 V✓✓
- Rated / max output current
- 32 A✓✓
- Max power 1-phase
- 7.4 kW✓✓
- Max power 3-phase
- 22 kW✓✓
- Grid frequency
- 50/60 Hz✓
Connector
- Connector type
- Type 2✓✓
- Socket / cable / shutter
- Tethered cable (fixed Type 2 plug; no socket)✓
Connectivity
- WiFi
- Yes✓
- Bluetooth
- Yes✓
- Cellular (4G/LTE)
- Optional✓
- SIM type
- Optional embedded GSM/SIM module✓
- PLC
- ISO 15118 Ready (HLC)✓
- OCPP versions
- OCPP 1.6✓✓
- Local API (Modbus / REST)
- Modbus TCP, JSON✓
- OEM onboarding / API docs (link)
- Yes (OCPP / smart-services help pages)✓
- Firmware update / OTA cadence
- Over-the-air updates via WiFi (regular)✓
Smart / load management
- Dynamic load balancing
- Optional✓
- Solar charging
- Optional✓
- Smart app
- Cloud app✓
- Scheduling / dynamic tariffs
- Time-controlled charging / charging plans✓
Safety detail
- DC leakage protection
- Yes✓
- Built-in RCD / RCBO type
- Integrated residual current protection: 30 mA AC + 6 mA DC✓✓
- IP rating
- IP67✓✓
- IK rating
- IK10✓✓
Environment
- Operating temperature
- -40 to +70 C✓✓
- Operating altitude
- 4000 m✓
- Humidity range
- 5-95%✓
Installation
- Quick-install claim
- Plug & play, no installation (Mode 2; ready in about 30 s)✓
- Indoor / outdoor
- Indoor & Outdoor✓
Compliance extra
- Standards (full list)
- IEC EN 62752 (Mode 2 IC-CPD); REACH; RED; RoHS; OVE Guideline R37; VDE & OVE certified✓
Market & positioning
- Markets sold / certified
- EU (CE), UK (UKCA), Australia/NZ (RCM)✓
- Primary active markets
- DACH (Austria, Germany)✓
- Apparent product focus
- Portable/home AC charging (Mode 2 mobile wallbox)✓
Certification & compliance
- CE / UKCA marking
- CE, UKCA✓✓
- Safety certification body / number
- VDE Mark approval 40053543; OVE certified (IC-CPD)✓
- Declaration of Conformity (link)
- https://nrgkick.com/wp-content/uploads/Zertifikat-CE_Konformitaetserklaerung_NRGkick_G2_EN.pdf✓
Media & assets
- Official datasheet (link)
- https://nrgkick.com/wp-content/uploads/Data-sheet_NRGkick_16A-32A.pdf✓
