Zaptec

Zaptec | Business / commercial

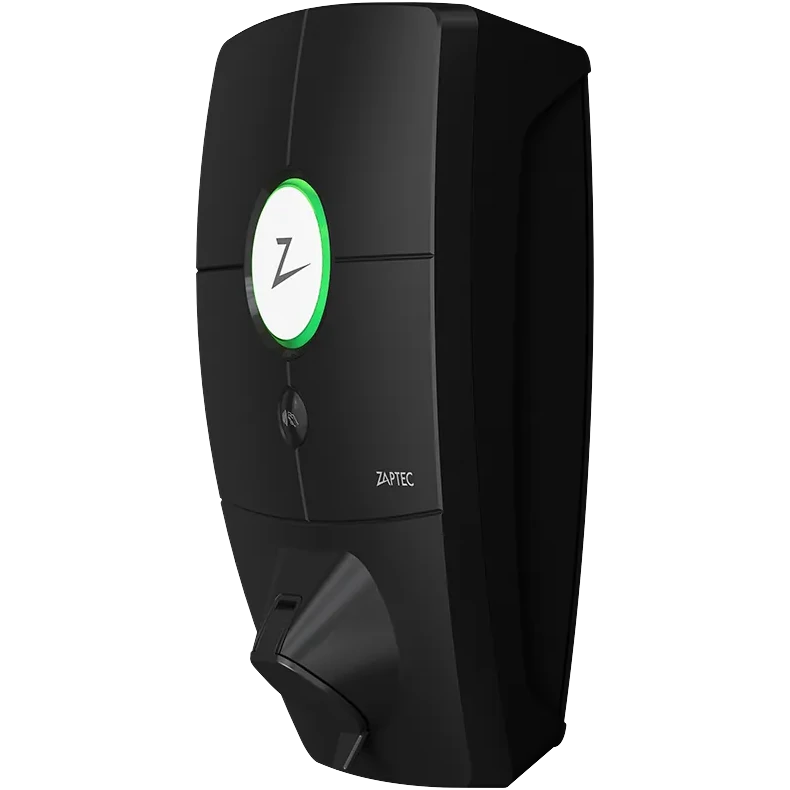

Zaptec Pro

alkaen €1,099

Yhteensopiva. Yhdistä ja hallinnoi Zaptec Pro-laturiasi Plugchoicella OCPP:n kautta, minkä tahansa muun merkin rinnalla.

AloitaValmistajan sivusto
Zaptec Pro

Mistä ostaa

Seuraamamme kaupat, jotka myyvät tätä laturia, halvin tunnettu hinta ensin. Hinnat on luettu julkisista ilmoituksista eivätkä sisällä asennusta, ellei toisin mainita.

Hinnat muuttuvat usein ja vaihtelevat alueen, alv:n ja kokoonpanon mukaan. Varmista ajantasainen hinta ja sisältö kaupalta ennen ostoa.

Tekniset tiedot

Jokainen arvo näyttää lähteensä ja päivän, jolloin se on luettu. Tarkistusmerkki osoittaa tiedon, jonka toinen riippumaton lähde on vahvistanut.

Identification

SKU(s)
ZPG014106 (Zaptec Pro 22 kW Type 2 socket)✓✓
Manufacturer SKU(s)
ZPG014106✓✓
Brand
Zaptec✓✓
Manufacturer / OEM
Zaptec Charger AS✓✓
Country of origin / design
Norway (designed, developed and manufactured in Norway)✓✓
Product segment
Commercial/business AC wallbox (Type 2 socket); wall or column-mounted, IEC 61851-1 EVSE mode 3✓✓
Range / variants
Zaptec Pro; Zaptec Pro MID (M&E metered variant). Home line is separate products: Zaptec Go, Zaptec Go 2.✓
Year on market
Zaptec Pro MID variant available from 2023-08-15✓✓
EAN / GTIN(s)
7090038510179✓✓
Lifecycle status
In production (actively sold commercial line)✓✓

Technical Specifications

Dimensions
H: 392 mm, W: 258 mm, D: 123 mm✓✓
Weight
approx. 5 kg (including backplate)✓✓
Charging capacity
22 kW at 32A / 3-phase (TN only); 7.36 kW at 32A / 1-phase; 12.7 kW at 32A / 3-phase on IT✓✓
Outlet connector
IEC 62196-2 Type 2 socket (female) with integrated self-closing cover; lockable✓✓
Number of outlets
1 (single Type 2 socket)✓✓
Network interfaces**
4G LTE-M (subscription); Wi-Fi 2.4 GHz 802.11 b/g/n (ch 1-11); Powerline PLC HomePlug Green PHY 10 Mbit/s✓✓
User interfaces
RGBW LED status circle; RFID/NFC reader; Zaptec app and Zaptec Portal✓✓
Internal energy meter
Built-in power meter, MID tested and calibrated (EN 50470)✓✓
Supported grid types
TN, IT and TT✓✓
(HMI) Identification
RFID/NFC reader (Mifare Classic, Type A); Bluetooth Low Energy (BLE 4.1)✓✓
Operating conditions
Operating temperature -30 to +40 C; max altitude 2000 m; pollution degree 4; indoor or outdoor; IP54; IK10✓✓
Standby consumption
5 W at standby✓✓
Compliance
CE (RED 2014/53/EU, RoHS 2011/65/EU); IEC 61851-1 (TUV SUD) and IEC 61851-22✓✓
Factory warranty
5 year warranty✓✓

Physical

Height (mm)
392✓✓
Width (mm)
258✓✓
Depth (mm)
123✓✓
Enclosure material
UL94 5VB flammability rating, UV resistant✓✓
Color options
Black✓
Tethered cable length
n/a (socket model, no tethered cable)✓✓
Mounting options
Wall or column (pole) mounted✓✓

Electrical

Number of phases
1-phase or 3-phase (dynamic 1/3-phase switching)✓✓
Rated voltage
230/400 V (+/-10%)✓✓
Rated / max output current
32 A✓✓
Max power 1-phase
7.36 kW at 32A / 1-phase✓✓
Max power 3-phase
22 kW at 32A / 3-phase (TN only); 12.7 kW on IT✓✓
Grid frequency
50 Hz✓✓
1-to-3 phase switching
Yes (dynamic phase balancing, switches 1/3-phase)✓✓
Max upstream fuse / breaker
Max 63A serial fuse on installation circuit✓✓
Internal fuses
Built-in 3x40A Type C breaker (Lovato P1 MB 3P C40, In 40A, curve C, Icn 10 kA, EN 60898-1:2019)✓✓
Bidirectional / V2G / V2H
No✓
Peak withstand / short-circuit current
Rated conditional short-circuit current 10 kA; peak let-through 2.6 kA; I2t 6.5 kA2s✓✓

Connector

Connector type
IEC 62196-2 Type 2 female socket✓✓
Socket / cable / shutter
Integrated self-closing protective cover on socket; cable can be locked permanently✓✓

Metering

MID certified
Yes; built-in MID-certified energy meter (EN 50470)✓✓

Connectivity

WiFi
Yes✓✓
WiFi bands / standard
2.4 GHz, IEEE 802.11 b/g/n (channels 1-11)✓✓
Bluetooth
Yes; Bluetooth Low Energy (BLE 4.1) for identification and configuration✓✓
Cellular (4G/LTE)
Yes; 4G LTE-M (subscription required)✓✓
Ethernet
No (datasheet lists only 4G LTE-M, Wi-Fi 2.4 GHz, Powerline PLC)✓✓
PLC
Yes; Powerline (PLC) HomePlug Green PHY, 10 Mbit/s✓✓
RFID / NFC
Yes; RFID/NFC reader (Mifare Classic, Type A)✓✓
Plug & Charge (ISO 15118)
ISO 15118 supported; Plug & Charge ready (PLC vehicle interface for future ISO 15118 services)✓✓
Local API (Modbus / REST)
ZapCloud REST API (OAuth) plus webhooks and AMQP message subscription; no documented local API or Modbus✓✓
Backoffice / CSMS compatibility
Third-party CPO/CSMS via OCPP-J 1.6 (box-level) or OCPP 1.6J cloud-to-cloud✓✓
OEM onboarding / API docs (link)
ZapCloud API docs (Swagger) at https://api.zaptec.com/help/index; integration guide PDF✓✓
Firmware update / OTA cadence
Over-the-air automatic updates from ZapCloud; online 24/7 (OCPP UpdateFirmware location ignored)✓✓

Smart / load management

Dynamic load balancing
Yes; power distributed automatically and dynamically across all chargers and phases via ZapCloud✓✓
Group / static load balancing
Yes; group load balancing across multiple chargers on one circuit; current cap via AvailableCurrent API✓✓
Phase balancing
Yes; dynamic phase balancing (switches 1/3-phase, selects any phase) for up to 66% better power utilisation✓✓
Smart app
Yes; Zaptec Portal (cloud) for monitoring, history, config and updates; auth via Zaptec app or RFID✓✓
Scheduling / dynamic tariffs
Yes✓

Safety detail

DC leakage protection
Built-in Type B RCD (RCCB), IDn 0.03 A, covers AC and DC residual currents✓✓
Built-in RCD / RCBO type
Type B RCCB, 30 mA (0.03 A), EN 62423:2012✓✓
Earth fault protection
Built-in Type B RCD; self-test before every charge; auto-reset by disconnecting connector✓✓
Overload / overcurrent protection
Integrated circuit breaker Lovato P1 MB 3P C40 (3P, In 40A, curve C, Icn 10 kA, EN 60898-1:2019)✓✓
Temperature sensors
Several internal✓
Insulation class
Protection class I (EN 61140)✓✓
Overvoltage category
Overvoltage category III (EN 61010-1); Uimp 6 kV / 4 kV✓✓
IP rating
IP54✓✓
IK rating
IK10✓✓
Pollution degree
4 (EN IEC 61439-7)✓✓
Anti-theft / cable lock
Cable lockable permanently via electronic lock; front cover opens only with special tool (SmartKey)✓✓

Environment

Operating temperature
-30 to +40 C✓✓
Operating altitude
2000 m maximum✓✓

HMI / UX

Display
MID model only: display showing total energy (kWh)✓✓
LED status indicator
RGBW LED status circle✓✓

Installation

Wire terminal type
Backplate junction box, cable 2.5-10 mm2✓✓
Quick-install claim
Flat-belt mounting; quick-release backplate✓
Modular / backplate
Yes; separate connection backplate; daisy-chaining only allowed when installation breaker is no more than 40A✓✓
Indoor / outdoor
Indoor or outdoor (EN IEC 61851-1)✓✓
Installation style (backplate / direct mount)
Backplate (separate connection backplate, pre-wireable)✓✓
Daisy-chainable
Yes (when installation breaker is 40A or less)✓✓

Compliance extra

Standards (full list)
IEC 61851-1 (TUV SUD), IEC 61851-22; EN IEC 61439-1/-7; EN 61140; EN 61010-1; EN 62423:2012; EN 60898-1:2019; EN 50470; IEC 62196-2; ISO 15118; RED 2014/53/EU; RoHS 2011/65/EU✓✓

Optional / non-technical

Max. AC IN wire size (mm2)
2.5 to 10 mm2✓✓
Max. AC IN outer diameter (mm)
10 to 18.5 mm✓✓
Lifetime software support
Cloud updates (ZapCloud)✓
Payment terminal
No (RFID/NFC + app only)✓✓

Market & positioning

Markets sold / certified
Sold/certified across Europe; MID variant targets Germany, Benelux and France✓✓

Certification & compliance

OCPP certification (OCA: certified/compliant + version)
OCPP compliant (self-declared) to OCPP 1.6J; no Open Charge Alliance certification found✓✓
